1/3" CCD, color 700 lines 12 ￠5 infrared lights, infrared distance: 10～15 meters Minimum illumination: 0 Lux. Day and night color design Aluminum alloy shell, flexible installation and angle adjustment
The latest 1/3" Panasonic Super HAD II CCD is adopted to achieve a horizontal resolution of 800 lines of image quality. Through automatic gain, white balance, backlight compensation, electronic shutter and other function settings, it can meet the needs of various environmental monitoring. Adopted High-quality LED wick, the minimum illumination reaches 0 Lux when the infrared is turned on, and the day and night color design is suitable for all-weather monitoring applications in vehicles.

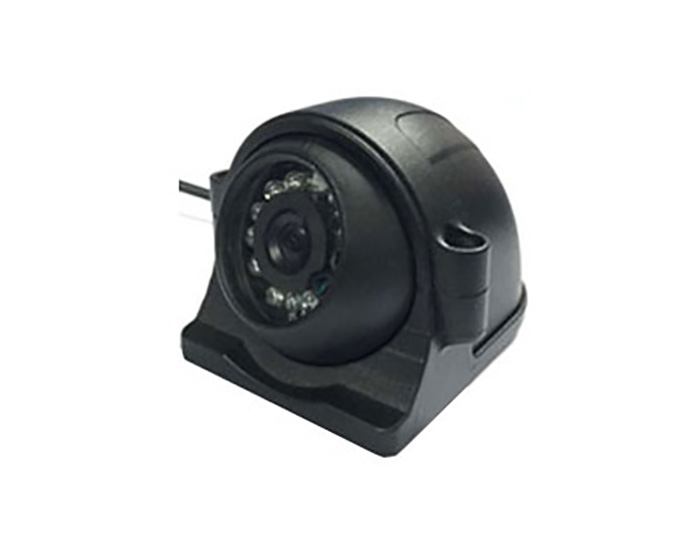

| Product number | TYD-903 2.8mm, side-mounted waterproof camera | |
| Video camera | Camera sticker | TYD-903 2.8 mm |
| Image Sensor | 1/3′Panasonic Super HAD CCD | |
| Horizontal resolution | 700TVL | |
| Effective Pixels | PAL: 976(H)*582(V) | |
| Signal System | PAL | |
| Minimum illumination | 0 LUX (infrared light on) | |
| Function | Video signal to noise ratio (S/N) | ≥50dB(AGC OFF) |
| Video output amplitude | 1.0Vp-p/75Ω | |
| White balance mode | Automatic tracking | |
| Automatic gain control | Auto | |
| Backlight compensation method | Auto | |
| Exposure mode | Electronic exposure | |
| Electronic shutter | 1/50(1/60) - 1/100000 秒 | |
| Gamma correction | 0.45 | |
| Synchronously | Internal synchronization | |
| Color to black | Auto | |
| Infrared light | Infrared light range | 15m (indoor)/10 meters (outdoor) |
| Infrared light is on | Auto | |
| Lens | Lens specifications | 2.8mm (optional: 3.6mm/6mm) |
| Matching lens | M12 spiral type | |
| Matched glass | High transparency glass | |
| Audio | Audio | Optional |
| Operating environment | Operating Voltage | DC12V±10% |
| working environment | Temperature: -20℃～50℃, humidity: 40～90% | |
| Whole machine working current | Infrared light on/off current: 135mA/56mA±10% | |
| Physical properties | Video output interface | Aircraft carrier |
| shell material | Aluminum alloy (black) | |
